PCB NO. | MDA101S |
INPUT | 100-240V AC 50/60Hz |
OUTPUT | 29.4V/25.2V 2A |
16.8V 3.3A | |
12.6V 4A | |
COOLING MODE | Fully closed/ Fanless |
PROTECTION | Over current protection |
Over voltage protection | |
Over temperature protection | |
Short-circuit protection | |
Reverse polarity protection | |
Timing protection | |
Switching off protection | |
Precharge-CC-CV protection | |
Recharge protection | |
CERTIFICATES | CB,CE,PSE,KC,KCC,RCM,C-Tick |
SAFETY STANDARD | EN60335,EN55014,EN61000,FCC |
SIZE | 140*62*35MM |

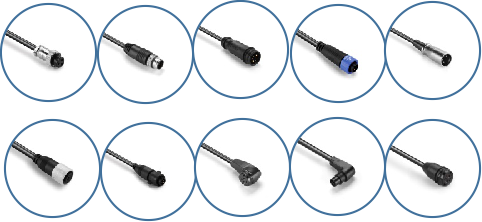

Optional Connectors |
|
